ASTM B432 Heat Exchanger Tube Sheet Gr16 Titanium Steel Plate Cladding

Ask Lasest Price
Brand Name :	HMD
Model Number :	NONE
Certification :	SGS, BV, TUV
Price :	USD 100-10000 per piece
Payment Terms :	L/C, T/T
Supply Ability :	500 tons per year
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

ASTM B432 Heat Exchanger Tube Sheet Gr16 Titanium Steel Plate Cladding

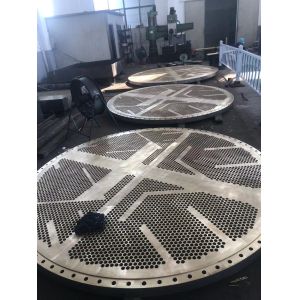

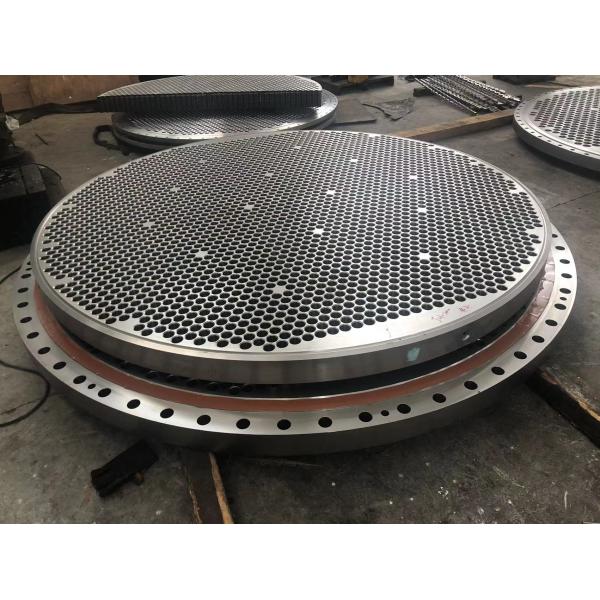

Titanium steel cladding tube sheet for heat exchanger

Maitan provides precision tubesheets with various materials include wide range of clad steel consisting of corrosion resistant materials. We are strict to use of high quality and guaranteed raw material , proved by raw material certificate with each delivery.

CNC drilled, chamfer, grooved etc as the drawings' requirements.

Tube holes can be drilled and reamed and can be machined with one or more grooves. This greatly increases the strength of the tube joint.

Type of materials	Technical requirements * according to
Duplex Stainless Steel	ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61
Stainless Steel	ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347
Carbon Steel	ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2
Alloy Steel	ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3
Non Ferrous	Titanium, Brass, Al-Brass, Copper Nickel, Nickel Alloys, Hastelloy
Titanium	ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16
Copper Nickel	ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30)
Brass, Al-brass	ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200
Nickel Alloys	ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625
Alloy 20	ASTM/ASME SB472 UNS 8020
Hastelloy	ASTM/ASME SB564, UNS10276 ( C 276 )
Claded materials	ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1.
Claded materials	Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc.

Product Tags:

ASTM B432 Heat Exchanger Tube Sheet

Heat Exchanger Tube Sheet Gr16

Gr16 Titanium Steel Plate Cladding

ASTM B432 Heat Exchanger Tube Sheet Gr16 Titanium Steel Plate Cladding

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	HENAN HUAMAO METAl MATERIALS CO ,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Titanium Clad Plate products from this supplier

Find Similar Products By Category:

Minerals & Metallurgy

Hot Searches:

Category		Material	Dimension(mm)	Specification
Rare and Refractory Metal Clad Plate	Ti/CS Clad Plate	Ti& Alloy/CS & Forging	1~12/3~200	NB47002.3 GB8547、ASTM B898
	Ti/SS Clad Plate	Ti& Alloy/Various SS	1~10/2~200	GB8546、ASTM B898
	Zr/CS Clad Plate	Zr& Alloy/CS & Forging	1~10/2~50	Negotiation
	Ti/Cu Clad Plate	Ti& Alloy/Cu	1~12/2~100	Q/XB1506
	Ta/CS Clad Plate	Ta & Alloy/CS & Forging	1~12/2~50	GB8547 or NB47002.3
	Ag/SS Clad Plate	Ag/Various SS	0.1~5/0.2~50	Negotiation
	Ag/Cu Clad Plate	Ag & Alloy/Cu	0.1~5/0.2~50	GB2073
Nonferrous Metal Clad Plate	Al/CS Clad Plate	Al & Alloy/CS & SS	0.1~25/0.2~200	Q/XB1906
	Al/Cu Clad Plate	Al & Alloy/Cu	0.1~25/0.2~200	GB13328、Q/XB1906 or JISG3604
	Cu/CS Clad Plate	Cu & Alloy/CS & Alloy	0.1~20/0.2~200	NB47002.4 or JISG3604
	Cu/SS Clad Plate	Cu & Alloy/Various SS	0.1~25/0.2~200	NB47002.4 or JISG3604
	Ni/CS Clad Plate	Ni & Alloy/CS & Forging	0.1~25/0.2~200	NB47002.2
Stainless Steel Clad Plate	SS/CS Clad Plate	Austenitic Stainless Steel, Duplex Stainless Steel/ Various Carbon, Forging	1~12/2~200	NB47002.1、JISG3601、ASME SA264
